BIOPEL MINI TOWER V12
Truly compact boiler size
The slimmest pellet boiler on the market significantly saves space in the boiler room.
Saves time on boiler operation
The boiler automatically controls the heating process and the necessary adjustments.
Saves costs
The boiler’s high efficiency saves on heating costs.
Modern approach
The boiler is easy to control via the control unit’s display, from a mobile phone, or from a computer.
The Biopel MINI TOWER V12 pellet boiler can be used even in very small boiler rooms, with a width of 36 cm and an output of 11 or 15 kW.
Thanks to the new-generation V12 control unit, users benefit from advanced control with maximum automation, an intuitive 5‑inch touchscreen, and a clear graphical interface.
Easy operation
- It burns for up to 36 hours without needing to refill pellets. Compared to manually fed boilers, this saves you tens of minutes to hours per week.
- Wi-Fi connectivity included with the boiler — the standard internet connection allows customers to control the boiler remotely and also saves on boiler service costs. The service company can remotely check the boiler’s parameters and settings without having to travel to the customer’s location.
- Automatic ignition — Biopel mini pellet boilers are capable of igniting the pellets in the burner on their own to start boiler operation, and they can also let the pellets in the burner burn out on their own. This allows the pellet boiler to function similarly to a gas boiler, and the fire can be ignited remotely.
- Easy maintenance and burner cleaning — Biopel mini burners are located in the front door of the boiler, making it easy to access the burner grate and clean it of any debris. The burner is also equipped with a removable grate, which makes cleaning even easier.
The smart, next-generation V12 control unit allows for comprehensive control of the boiler and all components of the heating system
- Provides control of hot water heating, storage tank and underfloor heating
- Control of 2 mixing valves.
- Connection of 2 room thermostats to control 2 independent heating circuits.
- Connection of 5 pumps.
- Equithermal regulation based on outdoor temperature.
- Weekly operation programming.
- Heating of the storage tank using 2 temperature sensors.
- Possibility of control also via mobile application.
- Firmware update via USB.
- Works with solar panels and other heat sources.
- Integrated control of heating system elements saves costs on purchasing a boiler room.
- Feeder calibration — a function that adapts the boiler to burning various variants of quality pellets.
- Support for communication with smart home systems via the sinum module.
Space-saving and compatibility
- Storage Tanks — The Biopel MINI Tower boilers can be connected to various storage tank models, such as the Tower 40 or 60, depending on the boiler size. It is suitable for small spaces.
- Compatibility — When shipping pellet boilers, the boiler, burner, and hopper are delivered separately packaged. This system allows for easy installation of the boiler in the boiler room, as all components of the set can fit through a 60 cm wide door, eliminating the need to carry the entire weight of the pellet boiler set at once.
Economical and eco-friendly operation
- Efficiency of up to 93.7% for maximum fuel savings.
- Minimal electricity consumption.
- Smooth output modulation from 10% to 100% for optimal performance and savings.
- Complies with Ecodesign, Emission Class 5, and strict German standards, and is eligible for subsidies.
Long service life
- Burner made of highly durable, heat-resistant stainless steel — maximum service life even under demanding conditions.
- The boilers are designed for maximum service life and reliability. Every detail reflects decades of experience in development and manufacturing, ensuring long-term, trouble-free operation.
- 5‑year warranty on weld integrity when the boiler is installed by a trained installation company in accordance with the operating instructions
Accessories

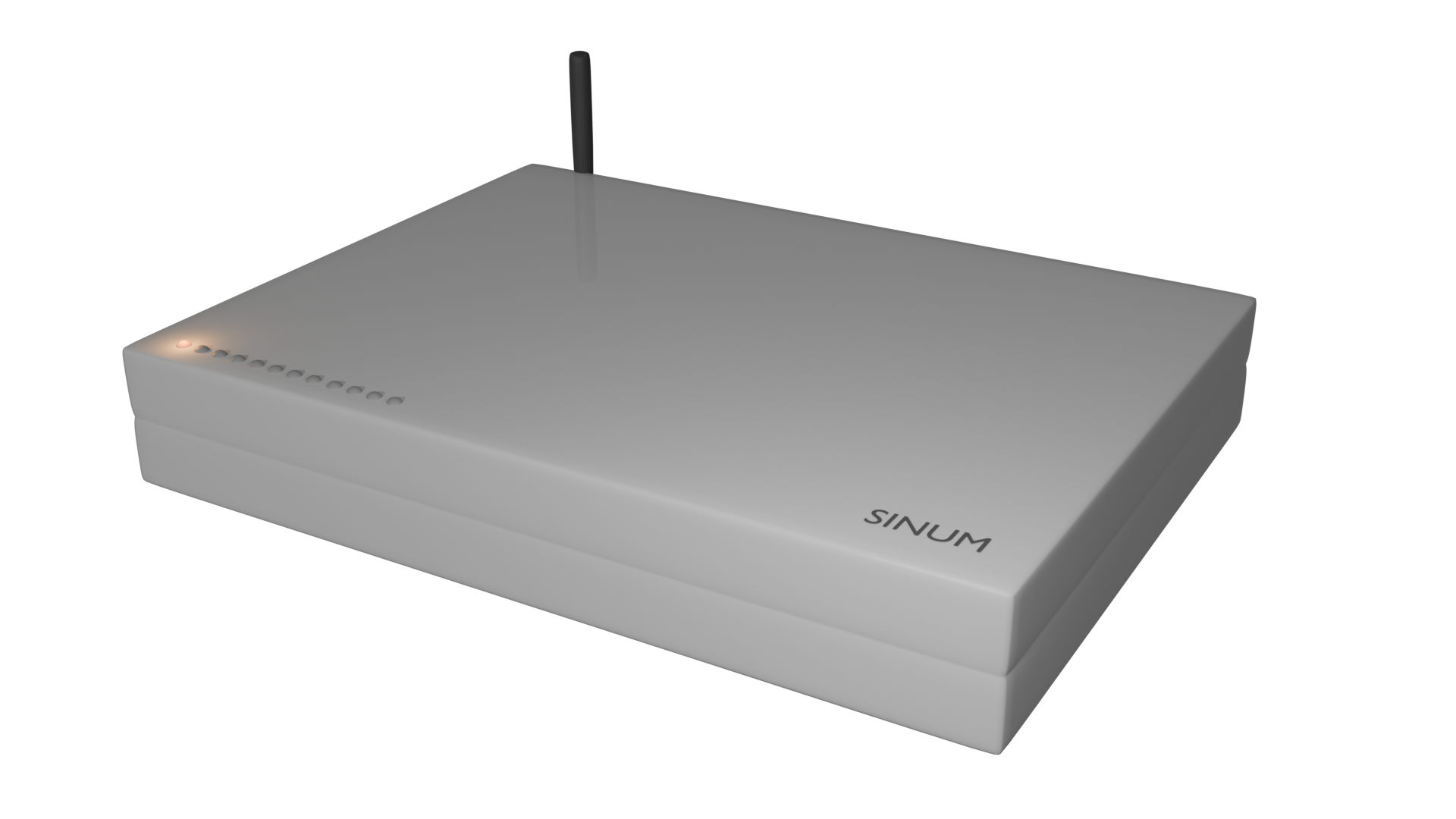

- Sinum module — smart home
- Support for communication with smart home systems.
- Integration of boiler operation with other technologies in the home.
- Fuel level overview – pellet level sensors
- Intelligent monitoring of pellet levels in the hopper.
- Notifications when refilling is needed.
- Automatic cleaning of the boiler heat exchanger and burner
- The interval between manual boiler cleanings can be extended to up to six months.
- No moving parts in the boiler – no risk of mechanical failure.
- Automatic ash removal
- extends the interval between ash removal to several months.
- Lambda probe for smart combustion
- The lambda sensor controls combustion based on the oxygen content in the exhaust gases.
- Cleaner operation and lower emissions without the need for manual intervention.
- RT 10 Room Thermostat for comfortable temperature control in your home
- It is designed to control and monitor room temperature, central heating temperature, and domestic hot water temperature.
- It features a weekly heating schedule and works with four mixing valves.
- Vacuum feeder — pellet transport over longer distances
- Automatically moves pellets from the silo to the boiler hopper over a distance of up to 8 meters.
- Allows the boiler to operate without manually refilling the hopper with pellets.
- Hydraulic kit for quick installation
- Hydraulic kit with a thermostatic valve, pump, and safety group for easy and quick connection of the boiler to the heating system.
- A compact solution that saves space behind the boiler.
- Exhaust fanThe speed of the exhaust fan is adjusted according to the current output directly by the control unit.
- It is suitable for use in conditions of low chimney draft.
- Outdoor sensor — allows you to adjust the water temperature control in the boiler’s heating system based on the outdoor temperature, thereby saving on heating costs.
Príslušenstvo
- Modul sinum — múdra domácnosť
- Podpora komunikácie so systémami chytrej domácnosti.
- Prepojenie prevádzky kotla s ďalšími technológiami v dome.
- Prehľad o stave paliva – čidlá hladiny peliet
- Inteligentné sledovanie hladiny peliet v násypke.
- Upozornenie na nutnosť doplnenia.
- Automatické čistenie výmenníka kotla a horáka
- Interval manuálneho čistenia kotla sa môže predĺžiť až na pol roka.
- Bez pohyblivých dielov v kotli – bez rizika mechanickej poruchy.
- Automatické odpopolnenie
- predĺži interval vynášania popola na niekoľko mesiacov.
- Lambda sonda pre chytré spaľovanie
- Lambda sonda riadi spaľovanie podľa obsahu kyslíka v spalinách.
- Čistejšia prevádzka a nižšie emisie bez nutnosti zásahov.
- Izbový termostat RT 10 pre komfortné riadenie teploty vo Vašom dome
- Je určený na ovládanie a sledovanie izbovej teploty, teploty ústredného kúrenia a teplej úžitkovej vody.
- Obsahuje týždenný vykurovací program a pracuje so štyrmi zmiešavacími ventilmi.
- Vákuový podávač — transport peliet na dlhšiu vzdialenosť
- Automaticky presun peliet zo sila do násypky kotla na vzdialenosť až 8 metrov.
- Umožňuje prevádzkovať kotol bez dosypávania peliet do násypky.
- Hydraulický set pre rýchlu inštaláciu
- Hydraulický set s termostatickým ventilom, čerpadlom a bezpečnostnou skupinou pre ľahké a rýchle napojenie kotla na vykurovací systém.
- Kompaktné riešenie, ktoré šetrí priestor za kotlom.
- Odťahový ventilátor
- Otáčky odťahového ventilátora sú upravované podľa aktuálneho výkonu priamo riadiacou jednotkou.
- Je vhodný na použitie pri nízkom komínovom ťahu.
- Vonkajší snímač — umožňuje nastaviť riadenie teploty vody vo vykurovacom systéme kotla podľa vonkajšej teploty a ušetriť tak náklady za vykurovanie.
| Technické parametre kotlov | Biopel MINI 11 | Biopel MINI 15 | Biopel MINI 21 | Biopel MINI 30 | Biopel MINI 40 | |
|---|---|---|---|---|---|---|
| Nominálny výkon | kW | 11 | 15 | 21 | 30 | 40 |
| Minimálny výkon | kW | 3,3 | 4,4 | 6,1 | 7,6 | 9,8 |
| Záručné palivo | / | drevené pelety 6 – 8 mm | ||||
| Spotreba paliva | kg/h | 0,74 – 2,36 | 1,01 – 3,36 | 1,38 – 4,68 | 1,96 – 6,52 | 2,21 – 8,42 |
| Emisná trieda | 5 / Ekodesign | |||||
| Účinnosť | % | 93,6 | 93,3 | 92,9 | 92,7 | 93,6 |
| Vodný objem | L | 32 | 54 | |||
| Prevádzkový ťah komína | Pa | 5,5 | 7,5 | 8 | 11 | 11 |
| Maximálny pracovný tlak vody | Bar | 2 | ||||
| Maximálna teplota vykurovacej vody | °C | 80 | ||||
| Minimálna teplota vratnej vody | °C | 55 | ||||
| Teplota spalín (pri menovitom výkone kotla) | °C | 85 – 105 | 101 – 121 | 102 – 122 | 107 – 127 | 117 – 137 |
| Hmotnosť | kg | 160 | 240 | |||
| Rozmery | ||||||
| B Výška kotla | mm | 1088 | 1257 | |||
| H Šírka kotla | mm | 352 | 482 | |||
| J Hĺbka kotla vrátane krytu horáka | mm | 1043 | 1170 | |||
| K Umiestnenie dymovodu | mm | 281 | 308 | |||
| E Výška displeja | mm | 98 | ||||
| G Celková hĺbka s automatickým odpopolněním | mm | 1162 | 1277 | |||
| F Celková hĺbka s hydraulickým setom | mm | 1212 | 1338 | |||
| O Umiestnenie nátrubku výstupnej vody od zeme | mm | 822 | 992 | |||
| L Umiestnenie dymovodu od zeme | mm | 739 | 898 | |||
| N Umiestnenie nátrubku vstupnej vody od zeme | mm | 156 | ||||
| M Umiestnenie nátrubku vypúšťacieho ventilu od zeme | mm | 145 | ||||
| P Umiestnenie nátrubku výstupnej vody od dymovodu | mm | 106 | 155 | |||
| Q Umiestnenie nátrubku vstupnej vody od dymovodu | mm | 106 | 155 | |||
| R Priemer dymovodu | mm | 130 | 150 | |||
| X Šírka kotla vr. madlá | mm | 406 | 538 | |||
| Pripojovacie nátrubky | DN | G1 1/4″ | ||||
| Rozměry s externím zásobníkem | ||||||
| A elková šírka kotla vr. externého zásobníka(flexibilné rozmery) | mm | 1600 | 1730 | |||
| S Celková výška kotla vr. podávača (flexibilné rozmery) | mm | 1500 | ||||
| Rozměry s kompaktiním zásobníkem | ||||||
| A Celková šírka kotla s násypkou: KOMPAKT 150 | mm | 843 | 973 | |||
| A Celková šírka kotla s násypkou: KOMPAKT 225 | mm | 1003 | 1133 | |||
| X Hĺbka kompaktného zásobníka vr. podávača(150/225) | mm | 890/960 | ||||
| Z1 Hĺbka kompaktného zásobníka vr. príslušenstvo typ TOWER 40 | mm | 1010 | ||||
| Z1 Hĺbka kompaktného zásobníka vr. príslušenstvo typ TOWER 60 | mm | 1110 | ||||
| Parametre násypiek(cm) | Kapacita peliet(kg) | Hmotnosť násypky(kg) | A Výška (mm) | B Šírka(mm) | CC Hĺbka(mm) |
|---|---|---|---|---|---|
| 60x60 | 110 | 25 | 1300 | 600 | 600 |
| 80x80 | 220 | 29 | 1300 | 815 | 815 |
| 100x100 | 300 | 35 | 1300 | 1000 | 1000 |
| Externá násypka | 350 | 38 | 1300 | 815 | 1420 |
| kompakt 225 | 225 | 52 | 1283 | 599 | 960 |
| kompakt 150 | 150 | 43 | 1283 | 433 | 890 |
| TOWER 40 | 40 | 16 | 1386 | 352 | 720 |
| TOWER 60 | 60 | 19 | 1556 | 482 | 820 |
